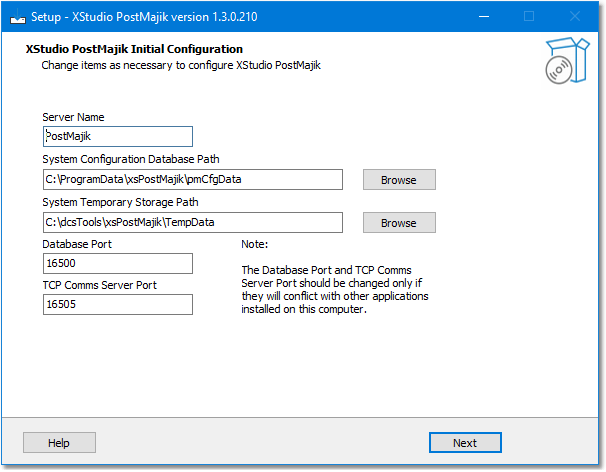

Following the extraction of XStudio PostMajik programs and support files, XStudio PostMajik Installer displays a server configuration page. The settings on this page determine the initial settings for XStudio PostMajik.
XStudio PostMajik Configuration
Based on choices made earlier in the installation process, XStudio PostMajik Installer displays recommended server configuration settings. Each of the configuration settings is described below:
Property |
Description |
||
|---|---|---|---|
Server Name |
The name which XStudio PostMajik will be identified. When a client application requests a list of available servers on a local area network, XStudio PostMajik will return this name. Enter a name that helps you identify the server. |
||
System Configuration Database Path |
The location of database tables that XStudio PostMajik uses for station information, templates, etc. The suggested location is recommended, but can be changed to suit your needs.
|
||
System Temporary Storage Path |
The location where XStudio PostMajik stores temporary files during operation. Temporary files are removed automatically when XStudio PostMajik closes normally. |
||
Database Port |
The port number that will be used by client applications to connect to XStudio PostMajik databases. Do not change this value unless you have a port conflict with another application. Default: 16500 |
||
TCP Comms Server Port |
The port number that will be used by client applications to send and receive system and status information from XStudio PostMajik. Do not change this value unless you have a port conflict with another application. Default: 16505 |
