Load directives are key components to satellite or full local automation in XStudio. It is important that you understand the use and meaning of directives. If you have questions about the proper use of directives, or need details on the specifics of using a particular directive, consult the topic on Log Directives.

When you have completed editing and press the [OK] button, your entries are validated and, if incorrect or missing, you get a warning message and the cursor is placed in the field that needs to be corrected.

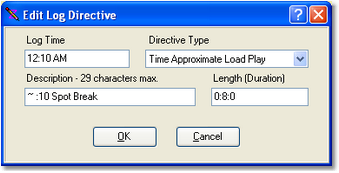

Load Directive Dialog Field Information

Items with a check mark in the REQ column require user entry, while unchecked items have default values which can optionally be changed.

Field

REQ

Usage

Log Time

..More.. Execution time for the directive. The time entered must fall between the previous not-spot time and the next non-spot time on the log.

Directive Type

..More.. The type of directive for this log item. Select the directive type from the drop-down list. See the topic on Log Directives for details on directive types and their usage.

Description

..More.. The text that will appear on the XStudio display for this log item.

Length



..More.. The execution length of the directive, as hours, minutes, seconds.



Entering Time Values
