ezSuite for XStudio, DCS, & Maestro

Once you have created an audit report, you can save the displayed report data to a file of your choosing. To save, select the menu item File | Save Report to File or click on the [Save Report] button on the toolbar.

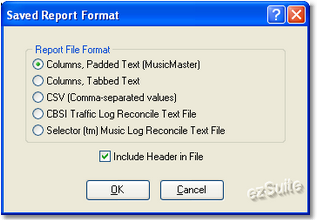

A dialog showing the available types (formats) of files to save is shown, similar to the one shown here. Select the file type you wish to save the data as, select any applicable options, then click [OK].

You can choose to include a report header. If the Include Header in File item is checked, the first line of the saved file will be each column's description.

You'll be next prompted to select a filename and folder location. Click [OK] after completing this task and the report is saved to the file you've designated.

Saved File Formats

ezSuite provides for the following types (formats) of files to be saved. File types and their usage is outlined below.

To use the reconcile features of SelectorTM and CBSI, you must correctly set up cart filters so that only music or commercials that need to be reconciled in the target scheduling system are included in the report.

Format (Type)

Explanation

Columns, Padded Text

The report information is saved as an ASCII text file. Each column's data is padded with spaces to a fixed length.

Columns, Tabbed Text

The report information is saved as an ASCII text file. Each column's data is separated by a [TAB] character.

CSV (Comma-Separated Values)

The report information is saved as an ASCII text file. Each column's information is bracketed with quote (") and each column is separated by a comma (,).

CBSI Traffic Log Reconcile Text File

The report information is saved as an ASCII text file. Columns are ordered to match the requirements of the CBSI Traffic System.

If you are migrating from CMAD and are using CBSI's ELR Limits, you may have to adjust these for the reconcile to work properly. Off CBSI's main ELR screen where eligible dates are displayed, there is a section called ELR Limits. In that section, there is a screen labeled "Computer Concepts DCS Limits", where you can set channel limits. You may have set a limit for channel 1 only, for instance. The entry may read something like "CH1". In ezSuite, only the channel number is picked up from the audit data, not the channel's name (defined in the DCS or Maestro configuration and not accessible to ezSuite). So, you'd need to change the channel limit to read "1" (in this example). CBSI looks for an exact channel name match if limits have been imposed.

SelectorTM Music Log Reconcile Text File

The report information is saved as an ASCII text file with an extension of .INP. This file meets the Linker Standard Schedule Output/Input Specification for electronic reconcile of the music log. To use the file, in Linker, go to Utilities, Interface to Other Products, then Schedule Reconciliation. Input the location, name of the file and the automation system. Then run the reconciliation.
