XStudio Recorder

Scheduled events are a way of executing an Action (a group of Tasks) at a predetermined time of the day. You can control the execution of a scheduled event in several ways, including disabling the event altogether.

Click to expand/collapse

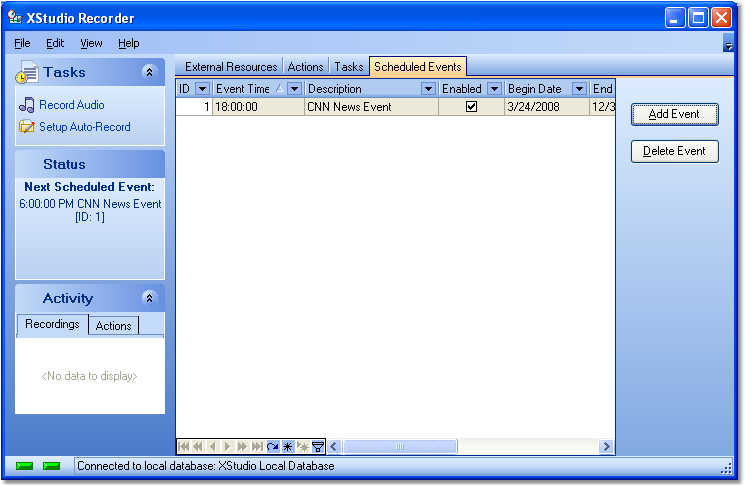

Scheduled Events Maintenance Display

Adding a New Scheduled Event

To create a new Scheduled Event, click on the [Add Event] button. The Scheduled Event properties dialog will be displayed. Select the Action to be performed and set other property settings as needed.

In order to create a scheduled event, at least one Action must exist in the automation database. If there are no Actions, you will be prompted to create one before adding a scheduled event.

Editing a Scheduled Event

To edit an existing event, [Double-Click] on the event you wish to edit. The Scheduled Event properties dialog will be displayed. Revise the event properties as desired and click on the the [Apply] button to save the changes.

Temporarily Disable an Event

To temporarily disable a scheduled event, select the event you wish to disable and [Double-Click] on it to open the Scheduled Event properties dialog. Uncheck the Event Enabled property and click on [Apply] to save the changes.

Deleting a Scheduled Event

Deleting a Scheduled Event is permanent and cannot be undone! If you are not sure you want to permanently remove an event, temporarily disable the event instead, as described above.

To permanently remove an event from the schedule, select the event and click on the [Delete Event] button.



Event Properties Dialog

Scheduled Event Table Reference
